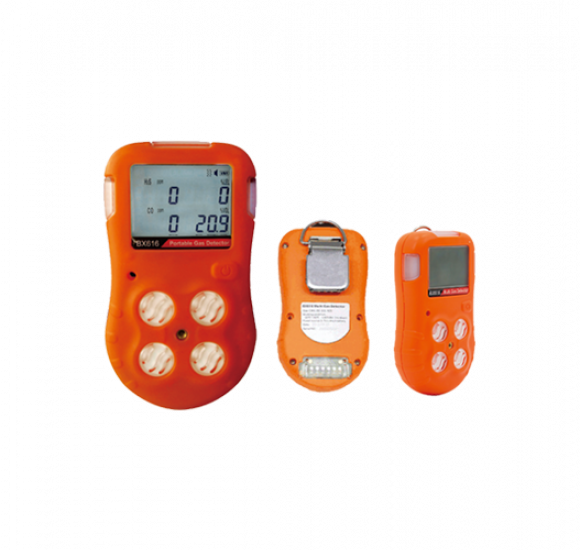

휴대용 멀티 가스감지기
BX616
제품특징
4Gas 측정가능
뛰어난 정확도와 안정성
1차, 2차 알람설정
청각, 시각 및 진동 경보
넓은 시야각의 LCD 디스플레이
배터리 저전압 경보

제품사양

BX616 사양
Model BX616
Measuring type Diffusion type
Measuring method Electrochemical Catalytic
Measuring gas O2 CO H2S Combustible
Measuring range 0-25%VOL 0-500PPM 0-100PPM 0-100%LEL
Alarm Low:19.5%VOL / High:23.5%VOL Low:16PPM / High:32PPM Low:6PPM / High:12PPM Low:20%LEL / High:50%LEL
Response time T90≤30s
Alarm signal Audible, visual, vibrative
Alarm sound 85dB@1m
Power source Lithium battery DC3.7V, 1800mAh
Ingress protection IP66
Operating temperature LEL:-40~70℃ Toxic:-20~50℃
Operating humidity ≤95%.RH (non-condensing)
Dimensions 120(W) x 68(H) x 30(D)mm about 220g
CERTIFICATION
ATEX IECEx
측정가스 목록

GAS RANGE TYPE BZ100 BX616 E410 BS01 BS02 BS03 WD2200
Combustible Gas 0-100%LEL Catalytic O O O O O O
0-100%LEL IR O O
H2 0-1000PPM Electrochemical O O
O2 0-25%VOL Electrochemical O O O O O O
H2S 0-100PPM Electrochemical O O O O O O
CO 0-500PPM Electrochemical O O O O O O
NH3 0-100PPM Electrochemical O O O
HF 0-10PPM Electrochemical O O
HCN 0-20PPM Electrochemical O
CL2 0-10PPM Electrochemical O O O
HCL 0-20PPM Electrochemical O O O
NO2 0-20PPM Electrochemical O O
CO2 0-6000PPM IR O
CO2 0-5%VOL IR O O
SO2 0-30PPM Electrochemical O O O
NO 0-1000PPM Electrochemical O O
VOC 0-500PPM PID O O O
O3 0-20PPM Electrochemical O O
COCL2 0-20PPM Electrochemical O O
EO 0-100PPM Electrochemical O O O
C2H4O 0-100PPM Electrochemical O O
CH2O 0-10PPM Electrochemical O O
H2O2 0-50PPM Electrochemical O O
PH3 0-20PPM Electrochemical O O
SiH4 0-10PPM Electrochemical O O
이외의 가스는 별도 문의 바랍니다.
