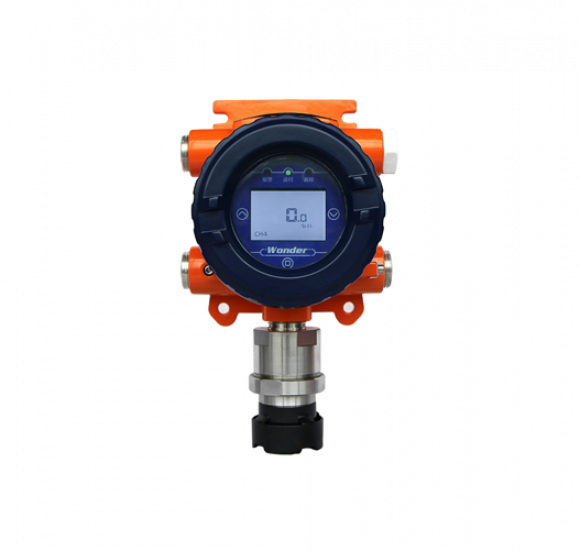

GTQ-WD2200
제품특징
뛰어난 정확도와 안정성
4-20mA 아날로그 출력
RS485 Power, Hart 디지털 출력
AL값에 따른 LCD 디스플레이
Relay 출력 3ea
원격 업그레이드 가능 (Option)
블루투스 통신 지원 (Option)
유지보수가 간편한 스마트 센서 모듈
적외선 리모컨을 통한 비접촉 동작제품사양

GTQ-WD2200 사양
Model GTQ-WD2200
Operating voltage DC20V~28V
Measuring type Diffusion type
Accuracy ±3% / Full scale
Operation mode display 3-LED (Power: GREEN, Alarm: RED, Fault: YELLOW)
Measuring value display LCD display (Built in back light 2color)
Output signal 4-20mA, Hart, RS-485-RTU
Material Aluminum alloy
Conduit connection NPT3/4 (adapter for other size)
Mounting type 2" Pole mount, Wall mount, Option
Operating temperature LEL:-40~70℃ Toxic:-20~50℃
Operating humidity ≤95%.RH (non-condensing)
Dimensions 130(W) x 209(H) x 116(D)mm about 2.0kg
Parameter control Magnetic bar or Non intrusive control with a IR Remote (calibration, maintenance)
가연성
구분 내용
Measuring gas Combustible
Measuring method Catalytic or IR
Measuring range 0~100% LEL
Response time T90≤15S
O2 & 독성
구분 내용
Measuring gas O2 Toxic
Measuring method Electrochemical
Measuring range 0-25%VOL Refer to Toxic Gas Measuring Range
Response time T90≤30S
VOCs
구분 내용
Measuring gas VOCs
Measuring method PID or Semiconductor
Measuring range Refer to Toxic Gas Measuring Range
Response time T90≤30S
CERTIFICATION
KCs ATEX IECEx CCS
측정가스 목록

GAS RANGE TYPE BZ100 BX616 E410 BS01 BS02 BS03 WD2200
Combustible Gas 0-100%LEL Catalytic O O O O O O
0-100%LEL IR O O
H2 0-1000PPM Electrochemical O O
O2 0-25%VOL Electrochemical O O O O O O
H2S 0-100PPM Electrochemical O O O O O O
CO 0-500PPM Electrochemical O O O O O O
NH3 0-100PPM Electrochemical O O O
HF 0-10PPM Electrochemical O O
HCN 0-20PPM Electrochemical O
CL2 0-10PPM Electrochemical O O O
HCL 0-20PPM Electrochemical O O O
NO2 0-20PPM Electrochemical O O
CO2 0-6000PPM IR O
CO2 0-5%VOL IR O O
SO2 0-30PPM Electrochemical O O O
NO 0-1000PPM Electrochemical O O
VOC 0-500PPM PID O O O
O3 0-20PPM Electrochemical O O
COCL2 0-20PPM Electrochemical O O
EO 0-100PPM Electrochemical O O O
C2H4O 0-100PPM Electrochemical O O
CH2O 0-10PPM Electrochemical O O
H2O2 0-50PPM Electrochemical O O
PH3 0-20PPM Electrochemical O O
SiH4 0-10PPM Electrochemical O O
이외의 가스는 별도 문의 바랍니다.
